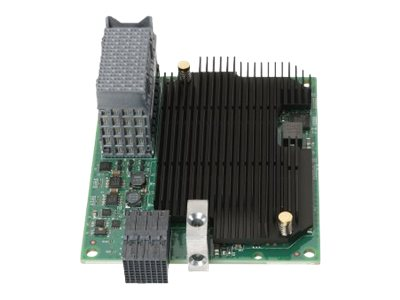

LENOVO DCG Flex System FC5054 4-port 16Gb FC Adapter
- Logga in för pris
-
Information
- 4-port 16 Gb Fiber Channel adapter
- Dual-ASIC (FC5054) controller using the Emulex XE201 design, which allows for logical partitioning on Power Systems compute nodes
- Auto-Negotiate to 16Gb, 8Gb, or 4Gb
- Up to 2.4 million IOPS (dual ASICs: 2x 1.2 million IOPS)
- Up to 1.2 million IOPS on a single port (six times more IOPS than previous generation 8Gb FC HBAs)
- Cuts response times by up to 75% and doubles the throughput compared to the previous generation 8Gb FC HBAs
- Exceeds 10 million hours mean time between failure (MTBF) with the most advanced data integrity protection (T10 PI) offload to protect against silent data corruption
- Two PCIe Express 3.0 x8 host interfaces (each 5 GTps), one for each ASIC
- ASICs treated as separate devices by the driver: No shared resources (that is, no PCIe bridge) between ASICs and each ASIC has its own firmware chip
- MSI-X support
- X86 Fiber Channel common driver model with the FC3052 8Gb Fiber Channel adapter, and FCoE on the CN4054 10 Gb Ethernet and Flex System x222, x240, and x440 LOMs
-
Specifikation
