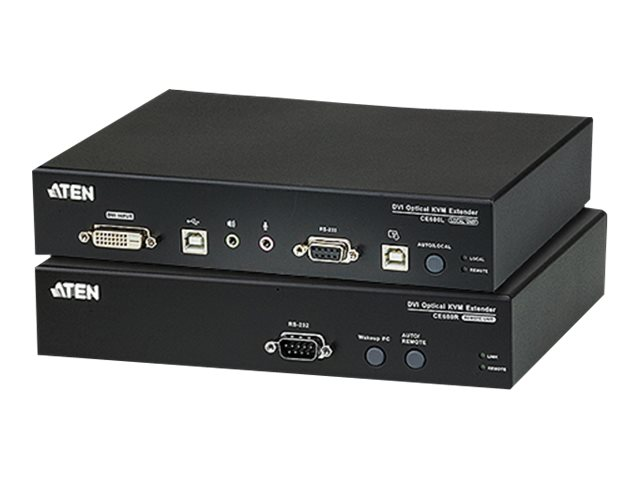

ATEN Optisk USB DVI KVM-extender (1920 x 1200 @600 m), Sändare och mottagare, Kabel, 600 m, 1920 x 1200 pixlar, 1920 x 1200, Svart
-
Information
- Allows access to a computer or KVM installation from a local/remote console
- Supports DVI-D interface and allows transmission of DVI single-link signals
- Superior video quality of up to 1920 x 1200 at 60 Hz (24-bits) - get an excellent, crisp image on your screen over long distance transmissions up to 600 m
- Touchscreen support - connect a generic touchscreen, including devices up to 10-point multi-touch, to accommodate highly interactive applications
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Uses one fiber optic cable to connect the local and remote units
- HDCP compatible
- RS-232 serial port - connect to a serial terminal, or serial devices such as barcode scanners (baud rate 115200 bps)
- PC wakeup support - use a pushbutton on a remote unit to wake a PC at the local site via RS-232
- Audio enabled - supports stereo speakers and microphone
- Rack mountable
It can also extend the keyboard/mouse remote control signals, as well as transfer RS-232 signals (up to 115 Kbps) in both directions, allowing you to connect serial devices, such as barcode scanners. A USB port on the local and remote unit's rear panel lets you connect a USB touchscreen panel device, which can access to a computer connected at the local site.
The CE680 allows access to a computer system from both local and remote consoles (USB keyboard, monitor, and mouse). Furthermore, the CE680 takes advantage of fiber optic cable technology for connecting the local and remote units, providing easy and quick installation and long-range extension of DVI signals.
-
