Lenovo 47C8675, PCIe, SAS, SATA, PCIe 3.0, Multifärg, UL cUL IEC60950 EMC FCC TUV CE VCCI BSMI C-tick KC, -5
40 ° C
- Logga in för pris
-
Information
- PCI Express 3.0
- A PCIe small form-factor design
- Eight internal 12 Gbps SAS/SATA ports
- Two x4 internal mini-SAS HD connectors
- Eight-lane PCI Express 3.0
- LSISAS3008 12 Gbps SAS/SATA controller
- SAS/SATA data transfer rates up to 12 Gbps per lane

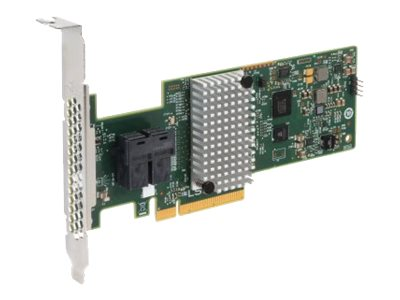

With a low-profile form-factor design, the N2215 SAS/SATA HBA for IBM System x offers two internal mini-SAS HD connectors. The N2215 is based on LSI's 3008 12 Gbps SAS I/O controller and provides eight lanes of 12 Gbps SAS and eight lanes of PCIe 3.0 to eliminate data bottlenecks and provide high data-transfer rates for medium- to large-capacity server storage applications.
-
