Atlona HDVS-150-TX, 4096 x 2160 pixlar, Sändare för AV-utrustning, 70 m, Kabel, Svart, HDCP

Information

2 i lager

Tillverkare Atlona

Artnr AT-HDVS-150-TX

Visa som PDF

Logga in för pris

Information
- 3 x 1 HDBaseT switcher
- Long distance HDMI extension
- Auto-switching
- Front panel Input Select button
- Auto display control
- Front panel Display On/Off control

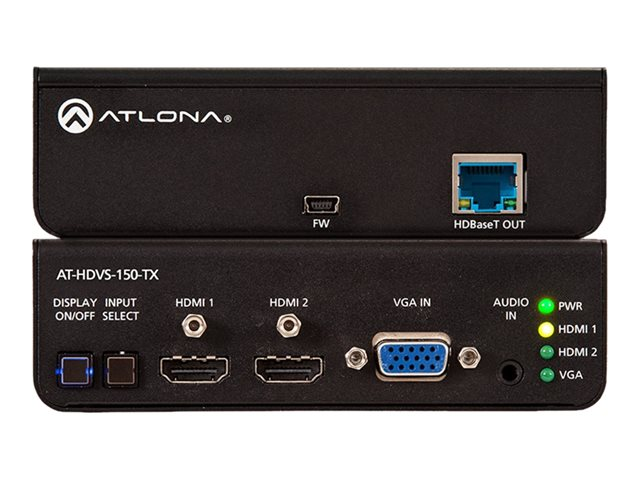

The AT-HDVS-150-TX is a 3 x 1 Switcher for HDMI and VGA Inputs with HDBaseT Output. It features two HDMI inputs plus a VGA input with 3.5 mm audio connector. Designed as a remote input device for the AT-UHD-CLSO-824 matrix switcher, the AT-HDVS-150-TX combines the benefits of a switcher with built-in auto-switching and the advantages of long-distance HDBaseT signal extension over a single cable. HDMI signals up to 4K/UHD @ 60 Hz with embedded audio, VGA input signals up to 1920 x 1200 video, and control signals can be extended up to 230 feet (70 meters). The switcher enables auto display on/off, auto-switching, along with other features. The switcher receives power from the AT-UHD-CLSO-824 using Power over Ethernet. The AT-HDVS-150-TX is ideal for long distance transmission and display control in corporate or educational settings using analog and digital sources.

The Atlona AT-HDVS-150-TX switcher expands the input capabilities of the AT-UHD-CLSO-824. Each remote switcher provides input access for up to three devices with controls for input selection and can control the power state of a display or projector when used with a third party control system. The HDVS series is designed to smooth the transition from analog to digital displays, allowing advanced HDMI display devices to be used with legacy VGA sources. The series also adds the simplicity and performance of HDBaseT technology to eliminate multiple cable runs and signal degradation that can occur with long transmission lines. Cost-effective and easy-to-terminate category cable provides additional integration benefits.
Specifikation
