Atlona AT-HDR-EX-100CEA-KIT, 4096 x 2160 pixlar, Sändare och mottagare för AV-utrustning, 100 m, Kabel, HDCP

Information
Ej i lager, kan gå att beställa
Tillverkare Atlona
Artnr AT-HDR-EX-100CEA-KIT
  • Information
    • 4K/Ultra HD capability, 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
    • HDCP 2.2 compliant
    • HDBaseT extender kit for HDMI, Ethernet, power, and control
    • Receiver powered by transmitter via PoE (Power over Ethernet)
    • Extends RS-232, IR, Ethernet, and CEC control signals over HDBaseT
    • Delivers return audio from a TV via dedicated audio pathway
    • HDBaseT link status testing

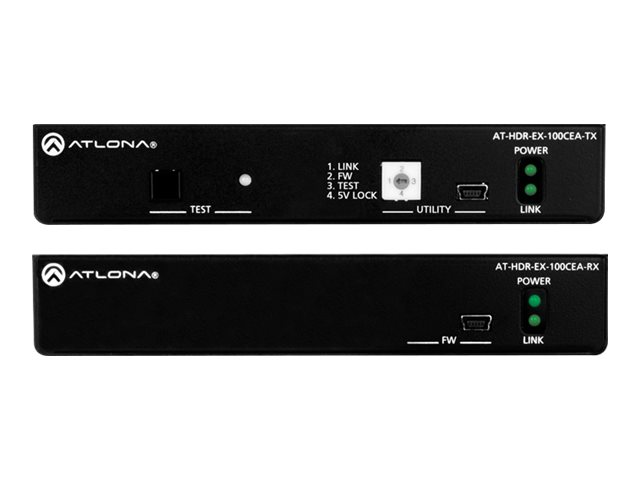

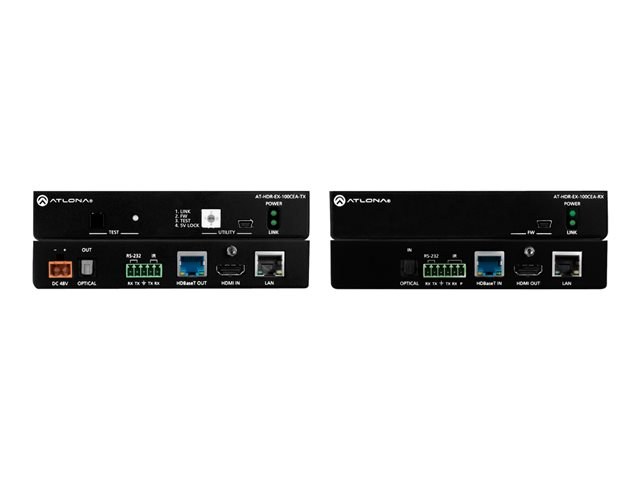

    The Atlona AT-HDR-EX-100CEA-KIT is an HDBaseT transmitter/receiver kit for high dynamic range (HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/Ultra HD video, 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-100CEA-KIT provides transmission of HDMI, Ethernet pass-through, and bidirectional IR and RS-232 control signals over CAT 6a/7 cable. This extender kit features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT. For additional integration convenience, the transmitter remotely powers the receiver through Power over Ethernet (PoE). The HDR-EX-100CEA-KIT can transmit digital audio from a television back to an AV receiver, via a dedicated audio pathway. The HDR-EX-100CEA-KIT is ideal for residential and commercial applications with the emerging 4K/Ultra HD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content.

  • Specifikation
